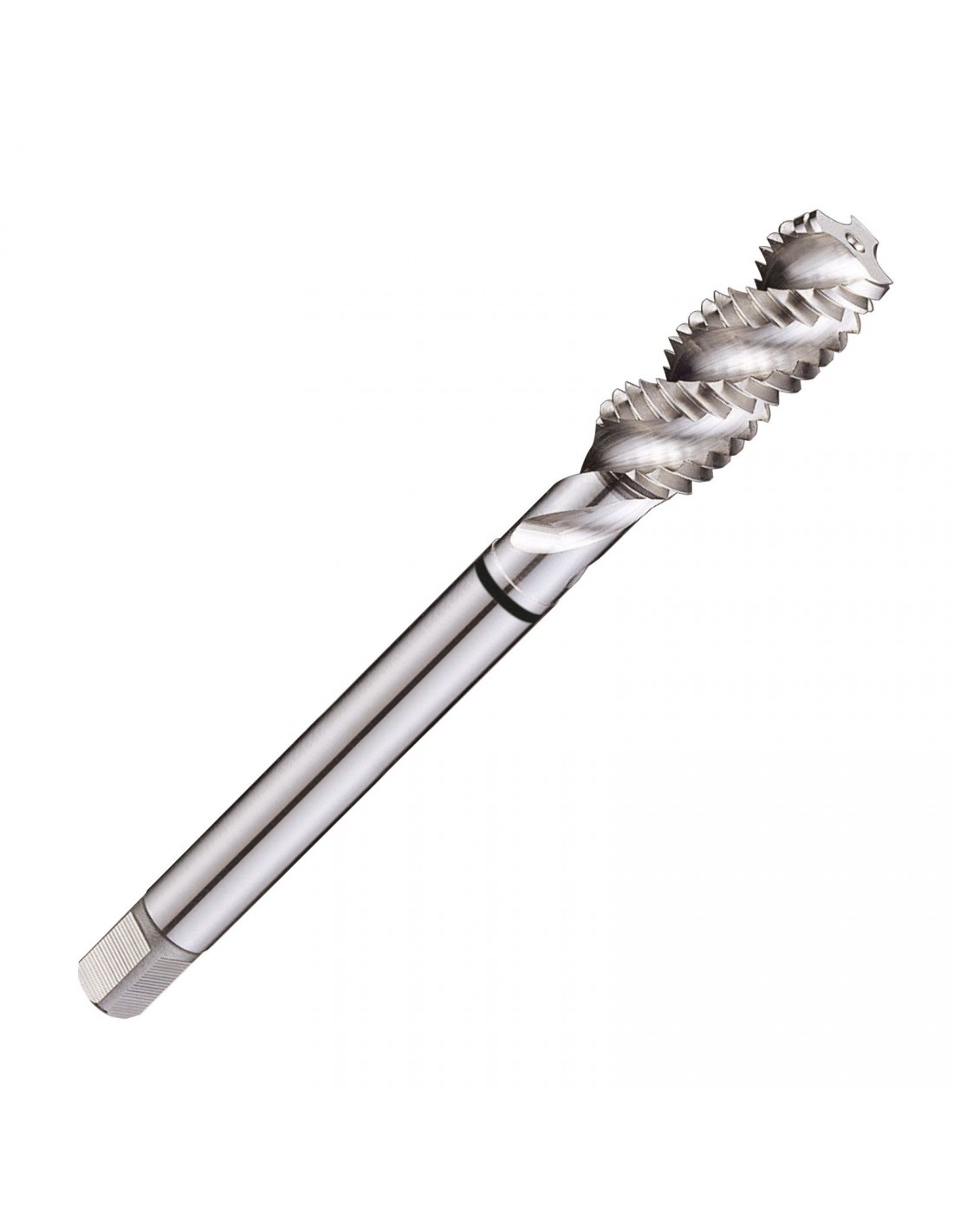

Mascle HSS-E (5% cobalt), helicoidal, brillant, geometria especial COMBO, multimaterial, rosca mètrica, mànec fi, entrada reduïda tipus E.
| Model | DCONMS (Diàmetre d'amarratge) | OAL (Longitud total) | LU (Longitud útil) | TDZ (Mida del diàmetre de la rosca) | TP (Pas de rosca) | PHD (Diàmetre forat previ) | THL (Longitud de rosca) | Disponibilitat | Referència | Preu | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TC807466 | 8 | 50 | 15 | M11 | 1.5 | 9.5 | 9 | Magatzem extern | TC807466 | 32,13 € |
|
| TC807496 | 8 | 50 | 15 | M11 | 1.5 | 9.5 | 9 | Magatzem extern | TC807496 | 17,80 € |
|
| TC807506 | 9 | 110 | 44 | M12 | 1.75 | 10.2 | 18 | Magatzem extern | TC807506 | 32,13 € |
|
| TC807546 | 11 | 110 | 44 | M14 | 2 | 12 | 20 | Magatzem extern | TC807546 | 38,95 € |
|
| TC807606 | 12 | 110 | 44 | M16 | 2 | 14 | 20 | Magatzem extern | TC807606 | 48,95 € |
|
| TC807656 | 14 | 125 | 50 | M18 | 2.5 | 15.5 | 25 | Magatzem extern | TC807656 | 64,87 € |
|
| TC807706 | 16 | 140 | 54 | M20 | 2.5 | 17.5 | 25 | Magatzem extern | TC807706 | 77,13 € |
|
| TC807746 | 18 | 140 | 54 | M22 | 2.5 | 19.5 | 25 | Magatzem extern | TC807746 | 95,67 € |
|
| TC807786 | 18 | 160 | 60 | M24 | 3 | 21 | 30 | Magatzem extern | TC807786 | 104,05 € |
|
| TC807866 | 20 | 160 | 60 | M27 | 3 | 24 | 30 | Magatzem extern | TC807866 | 149,59 € |
|
| TC807946 | 22 | 180 | 70 | M30 | 3.5 | 26.5 | 35 | Magatzem extern | TC807946 | 191,34 € |
|
