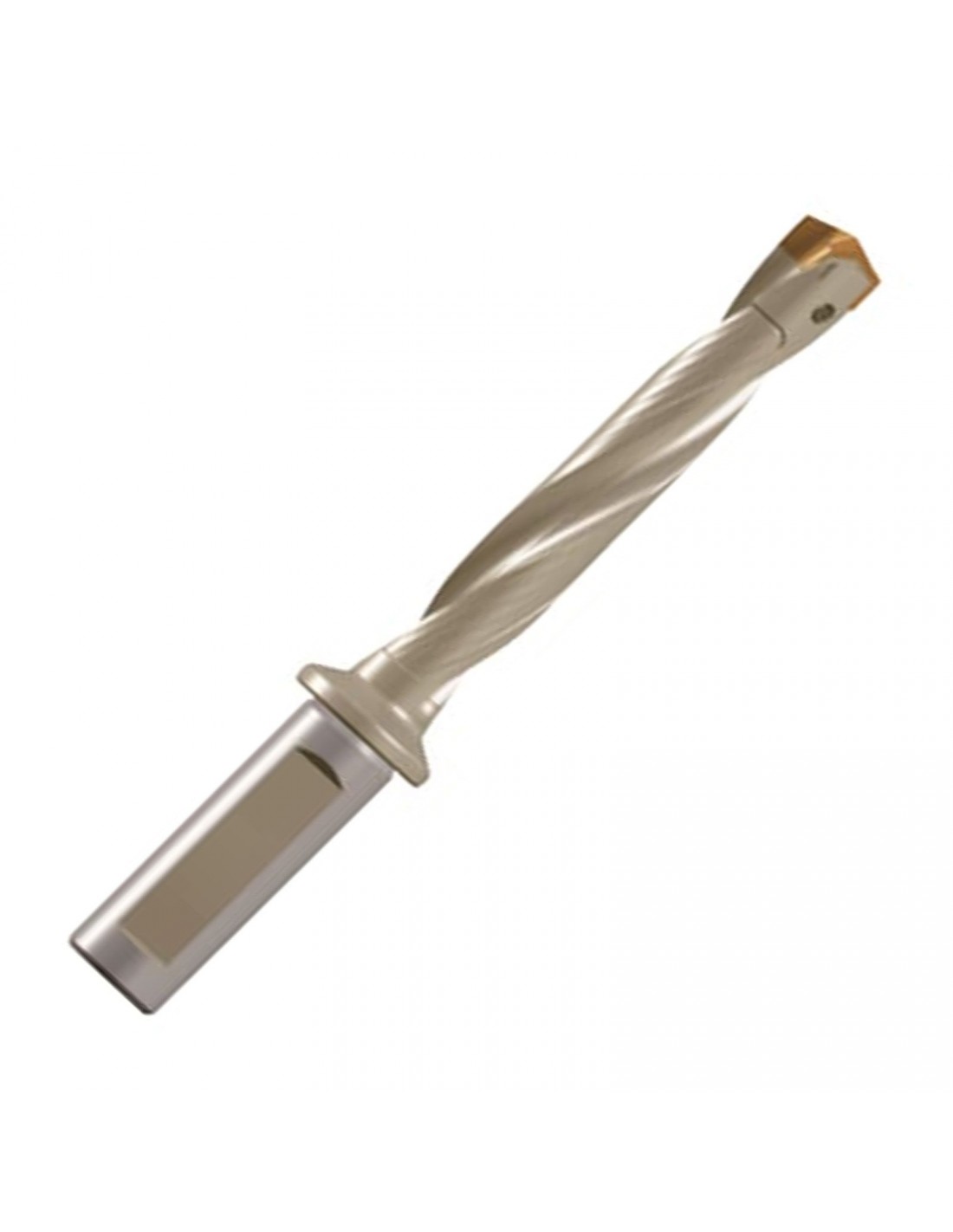

Cos de broca d'acer niquelat. Longitud útil 8 cops el diàmetre, amb refrigeració interna, mànec rectificat, geometria del llavi optimitzada, fixació de la plaqueta amb cargol Torx Plus®.
| Model | DCONMS (Diàmetre d'amarratge) | OAL (Longitud total) | LU (Longitud útil) | Mida de la placa | LS (Longitud del mànec) | DF (Diamètre de connexió) | Placa | Disponibilitat | Referència | Preu | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZD10008016 | 16 | 153 | 84 | 10.00~10.40 | 48 | 23 | Y101H1000-Y101H1040 | Magatzem extern | ZD10008016 | 404,45 € |
|
| ZD10508016 | 16 | 156.5 | 88 | 10.50~10.90 | 48 | 23 | Y101H1050-Y101H1090 | Magatzem extern | ZD10508016 | 404,45 € |
|
| ZD11008016 | 16 | 160 | 92 | 11.00~11.40 | 48 | 23 | Y101H1100-Y101H1190 | Magatzem extern | ZD11008016 | 404,45 € |
|
| ZD11508016 | 16 | 163.5 | 96 | 11.50~11.90 | 48 | 23 | Y101H1150-Y101H1191 | Magatzem extern | ZD11508016 | 404,45 € |
|
| ZD12008016 | 16 | 169.8 | 100 | 12.00~12.40 | 48 | 23 | Y101H1200-Y101H1240 | Magatzem extern | ZD12008016 | 404,45 € |
|
| ZD12508016 | 16 | 173.3 | 104 | 12.50~12.90 | 48 | 23 | Y101H1250-Y101H1290 | Magatzem extern | ZD12508016 | 404,45 € |
|
| ZD13008016 | 16 | 177.8 | 108 | 13.00~13.40 | 48 | 23 | Y101H1300-Y101H1349 | Magatzem extern | ZD13008016 | 424,29 € |
|
| ZD13508016 | 16 | 181.3 | 112 | 13.50~13.90 | 48 | 23 | Y101H1350-Y101H1390 | Magatzem extern | ZD13508016 | 424,29 € |
|
| ZD14008016 | 16 | 186.3 | 116 | 14.00~14.40 | 48 | 23 | Y101H1400-Y101H1440 | Magatzem extern | ZD14008016 | 424,29 € |
|
| ZD14508016 | 16 | 190.8 | 120 | 14.50~14.90 | 48 | 23 | Y101H1450-Y101H1490 | Magatzem extern | ZD14508016 | 445,19 € |
|
| ZD15008016 | 16 | 195.3 | 124 | 15.00~15.40 | 48 | 23 | Y101H1500-Y101H1548 | Magatzem extern | ZD15008016 | 445,19 € |
|
| ZD15508016 | 16 | 198.8 | 128 | 15.50~15.90 | 48 | 23 | Y101H1550-Y101H1590 | Magatzem extern | ZD15508016 | 445,19 € |
|
| ZD16008020 | 20 | 209.5 | 136 | 16.00~16.90 | 50 | 25 | Y101H1600-Y101H1690 | Magatzem extern | ZD16008020 | 451,91 € |
|
| ZD17008020 | 20 | 217.5 | 144 | 17.00~17.90 | 50 | 25 | Y101H1700-Y101H1790 | Magatzem extern | ZD17008020 | 451,91 € |
|
| ZD18008025 | 25 | 233.8 | 152 | 18.00~18.90 | 56 | 32 | Y101H1800-Y101H1890 | Magatzem extern | ZD18008025 | 483,72 € |
|
| ZD19008025 | 25 | 242.8 | 160 | 19.00~19.90 | 56 | 32 | Y101H1900-Y101H1990 | Magatzem extern | ZD19008025 | 483,72 € |
|
| ZD20008025 | 25 | 250 | 168 | 20.00~20.90 | 56 | 32 | Y101H2000-Y101H2090 | Magatzem extern | ZD20008025 | 514,30 € |
|
| ZD21008025 | 25 | 258 | 176 | 21.00~21.90 | 56 | 32 | Y101H2100-Y101H2190 | Magatzem extern | ZD21008025 | 514,30 € |
|
| ZD22008025 | 25 | 265.9 | 184 | 22.00~22.90 | 56 | 32 | Y101H2200-Y101H2290 | Magatzem extern | ZD22008025 | 582,66 € |
|
| ZD23008025 | 25 | 274.9 | 192 | 23.00~23.90 | 56 | 32 | Y101H2300-Y101H2390 | Magatzem extern | ZD23008025 | 582,66 € |
|
| ZD24008032 | 32 | 288.3 | 200 | 24.00~24.90 | 60 | 37 | Y101H2400-Y101H2490 | Magatzem extern | ZD24008032 | 593,25 € |
|
| ZD25008032 | 32 | 298.3 | 208 | 25.00~25.90 | 60 | 37 | Y101H2500-Y101H2590 | Magatzem extern | ZD25008032 | 593,25 € |
|
| ZD26008032 | 32 | 304.7 | 216 | 26.00~26.50 | 60 | 37 | Y101H2600-Y101H2699 | Magatzem extern | ZD26008032 | 593,25 € |
|
| ZD27008032 | 32 | 312.7 | 224 | 27.00~27.50 | 60 | 37 | Y101H2700-Y101H2778 | Magatzem extern | ZD27008032 | 695,84 € |
|
| ZD28008032 | 32 | 321.7 | 232 | 28.00~28.50 | 60 | 37 | Y101H2800-Y101H2897 | Magatzem extern | ZD28008032 | 695,84 € |
|
| ZD29008032 | 32 | 330.7 | 240 | 29.00~29.50 | 60 | 37 | Y101H2900-Y101H2977 | Magatzem extern | ZD29008032 | 695,84 € |
|
| ZD30008032 | 32 | 339.5 | 248 | 30.00~30.50 | 60 | 37 | Y101H3000-Y101H3096 | Magatzem extern | ZD30008032 | 761,48 € |
|
| ZD31008032 | 32 | 348.5 | 256 | 31.00~31.50 | 60 | 37 | Y101H3100-Y101H3175 | Magatzem extern | ZD31008032 | 761,48 € |
|
| ZD32008032 | 32 | 359.7 | 264 | 32.00~32.50 | 60 | 37 | Y101H3200-Y101H3294 | Magatzem extern | ZD32008032 | 761,48 € |
|
| ZD33008032 | 32 | 368.7 | 272 | 33.00~33.50 | 60 | 37 | Y101H3300-Y101H3373 | Magatzem extern | ZD33008032 | 761,48 € |
|
