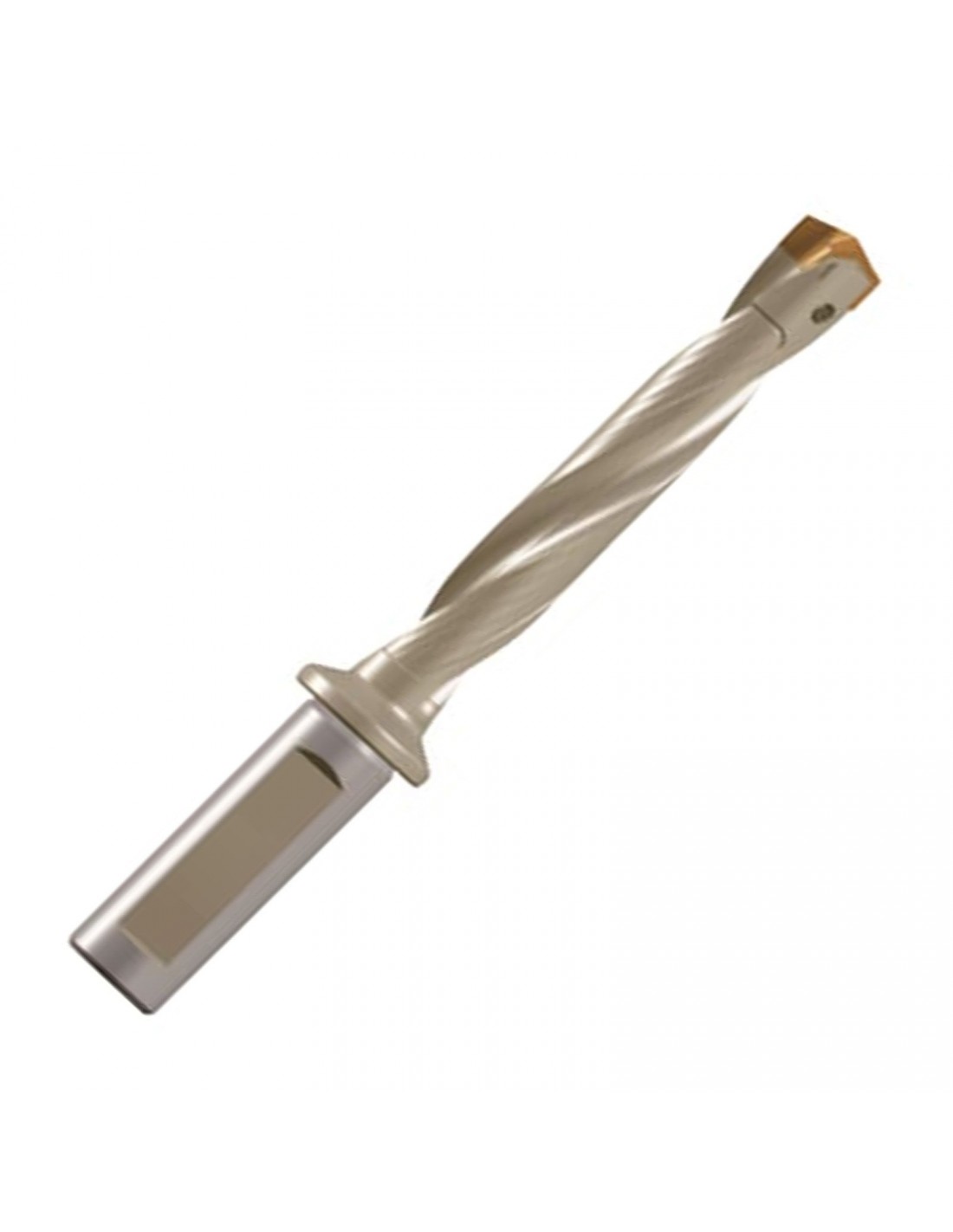

Cos de broca d'acer niquelat. Longitud útil 5 cops el diàmetre, amb refrigeració interna, mànec rectificat, geometria del llavi optimitzada, fixació de la plaqueta amb cargol Torx Plus®.
| Model | DCONMS (Diàmetre d'amarratge) | OAL (Longitud total) | LU (Longitud útil) | Mida de la placa | LS (Longitud del mànec) | DF (Diamètre de connexió) | Placa | Disponibilitat | Referència | Preu | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZD10005016 | 16 | 123 | 52.5 | 10.00~10.40 | 48 | 23 | Y101H1000-Y101H1040 | Magatzem extern | ZD10005016 | 384,10 € |
|
| ZD10505016 | 16 | 125 | 55 | 10.50~10.90 | 48 | 23 | Y101H1050-Y101H1090 | Magatzem extern | ZD10505016 | 384,10 € |
|
| ZD11005016 | 16 | 127 | 57.5 | 11.00~11.40 | 48 | 23 | Y101H1100-Y101H1190 | Magatzem extern | ZD11005016 | 384,10 € |
|
| ZD11505016 | 16 | 129 | 60 | 11.50~11.90 | 48 | 23 | Y101H1150-Y101H1191 | Magatzem extern | ZD11505016 | 384,10 € |
|
| ZD12005016 | 16 | 133.8 | 62.5 | 12.00~12.40 | 48 | 23 | Y101H1200-Y101H1240 | Magatzem extern | ZD12005016 | 384,10 € |
|
| ZD12505016 | 16 | 135.8 | 65 | 12.50~12.90 | 48 | 23 | Y101H1250-Y101H1290 | Magatzem extern | ZD12505016 | 384,10 € |
|
| ZD13005016 | 16 | 138.8 | 67.5 | 13.00~13.40 | 48 | 23 | Y101H1300-Y101H1349 | Magatzem extern | ZD13005016 | 403,01 € |
|
| ZD13505016 | 16 | 140.8 | 70 | 13.50~13.90 | 48 | 23 | Y101H1350-Y101H1390 | Magatzem extern | ZD13505016 | 403,01 € |
|
| ZD14005016 | 16 | 144.3 | 72.5 | 14.00~14.40 | 48 | 23 | Y101H1400-Y101H1440 | Magatzem extern | ZD14005016 | 403,01 € |
|
| ZD14505016 | 16 | 147.3 | 75 | 14.50~14.90 | 48 | 23 | Y101H1450-Y101H1490 | Magatzem extern | ZD14505016 | 422,85 € |
|
| ZD15005016 | 16 | 150.3 | 77.5 | 15.00~15.40 | 48 | 23 | Y101H1500-Y101H1548 | Magatzem extern | ZD15005016 | 422,85 € |
|
| ZD15505016 | 16 | 152.3 | 80 | 15.50~15.90 | 48 | 23 | Y101H1550-Y101H1590 | Magatzem extern | ZD15505016 | 422,85 € |
|
| ZD16005020 | 20 | 160 | 85 | 16.00~16.90 | 50 | 25 | Y101H1600-Y101H1690 | Magatzem extern | ZD16005020 | 429,24 € |
|
| ZD17005020 | 20 | 165 | 90 | 17.00~17.90 | 50 | 25 | Y101H1700-Y101H1790 | Magatzem extern | ZD17005020 | 429,24 € |
|
| ZD18005025 | 25 | 178.3 | 95 | 18.00~18.90 | 56 | 32 | Y101H1800-Y101H1890 | Magatzem extern | ZD18005025 | 454,17 € |
|
| ZD19005025 | 25 | 184.3 | 100 | 19.00~19.90 | 56 | 32 | Y101H1900-Y101H1990 | Magatzem extern | ZD19005025 | 454,17 € |
|
| ZD20005025 | 25 | 188.5 | 105 | 20.00~20.90 | 56 | 32 | Y101H2000-Y101H2090 | Magatzem extern | ZD20005025 | 456,65 € |
|
| ZD21005025 | 25 | 193.5 | 110 | 21.00~21.90 | 56 | 32 | Y101H2100-Y101H2190 | Magatzem extern | ZD21005025 | 456,65 € |
|
| ZD22005025 | 25 | 198.4 | 115 | 22.00~22.90 | 56 | 32 | Y101H2200-Y101H2290 | Magatzem extern | ZD22005025 | 486,57 € |
|
| ZD23005025 | 25 | 204.4 | 120 | 23.00~23.90 | 56 | 32 | Y101H2300-Y101H2390 | Magatzem extern | ZD23005025 | 486,57 € |
|
| ZD24005032 | 32 | 214.8 | 125 | 24.00~24.90 | 60 | 37 | Y101H2400-Y101H2490 | Magatzem extern | ZD24005032 | 516,46 € |
|
| ZD25005032 | 32 | 221.8 | 130 | 25.00~25.90 | 60 | 37 | Y101H2500-Y101H2590 | Magatzem extern | ZD25005032 | 516,46 € |
|
| ZD26005032 | 32 | 225.2 | 135 | 26.00~26.50 | 60 | 37 | Y101H2600-Y101H2699 | Magatzem extern | ZD26005032 | 516,46 € |
|
| ZD27005032 | 32 | 230.2 | 140 | 27.00~27.50 | 60 | 37 | Y101H2700-Y101H2778 | Magatzem extern | ZD27005032 | 586,90 € |
|
| ZD28005032 | 32 | 236.2 | 145 | 28.00~28.50 | 60 | 37 | Y101H2800-Y101H2897 | Magatzem extern | ZD28005032 | 586,90 € |
|
| ZD29005032 | 32 | 242.2 | 150 | 29.00~29.50 | 60 | 37 | Y101H2900-Y101H2977 | Magatzem extern | ZD29005032 | 586,90 € |
|
| ZD30005032 | 32 | 248 | 155 | 30.00~30.50 | 60 | 37 | Y101H3000-Y101H3096 | Magatzem extern | ZD30005032 | 642,25 € |
|
| ZD31005032 | 32 | 254 | 160 | 31.00~31.50 | 60 | 37 | Y101H3100-Y101H3175 | Magatzem extern | ZD31005032 | 642,25 € |
|
| ZD32005032 | 32 | 262.2 | 165 | 32.00~32.50 | 60 | 37 | Y101H3200-Y101H3294 | Magatzem extern | ZD32005032 | 642,25 € |
|
| ZD33005032 | 32 | 268.2 | 170 | 33.00~33.50 | 60 | 37 | Y101H3300-Y101H3373 | Magatzem extern | ZD33005032 | 642,25 € |
|
