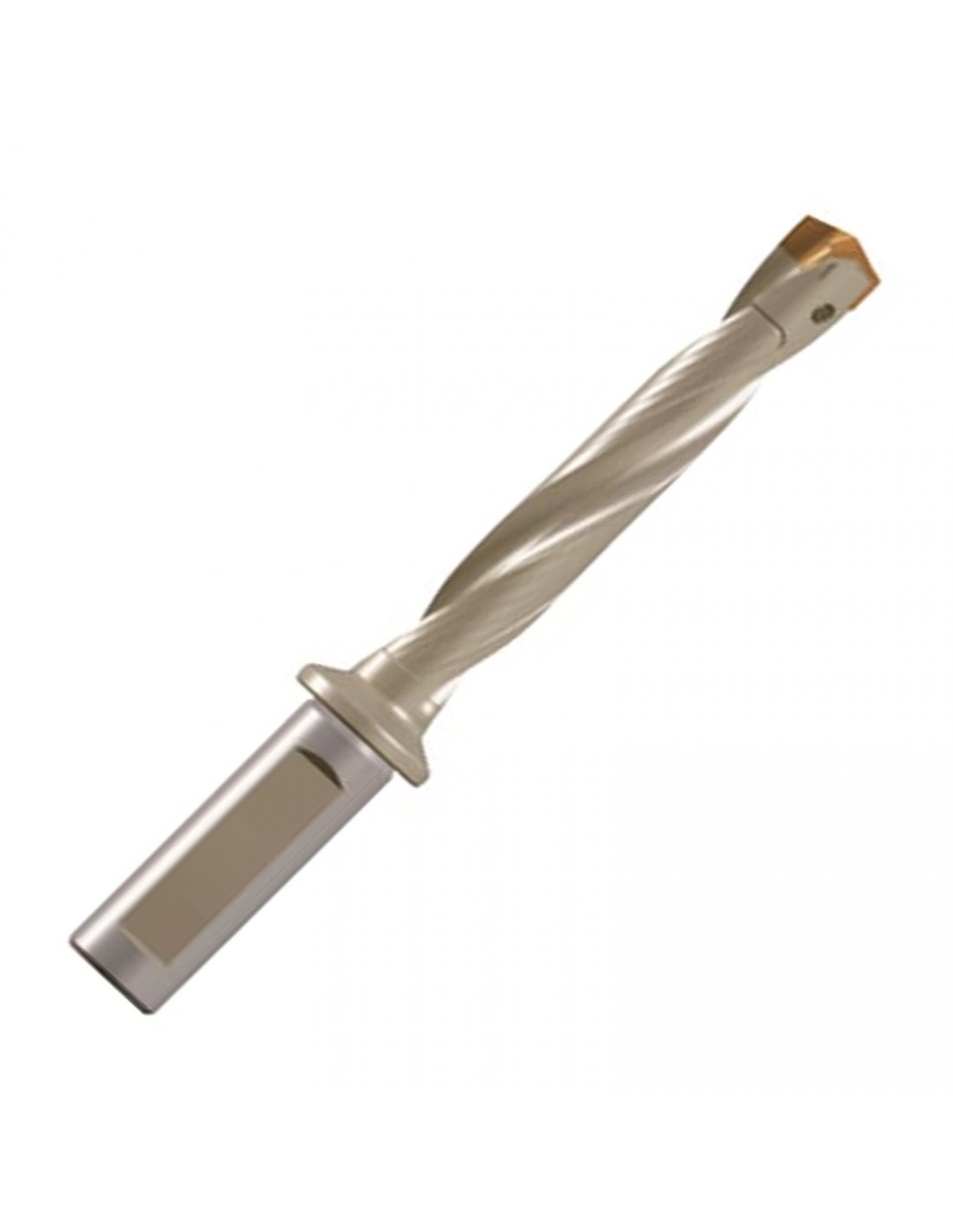

Cuerpo de broca de acero rápido para placa i-One drill. Con una longitud útil de 3 veces el diámetro permite taladrar hasta esta longitud con una perfecta evacuación de la viruta. El sustrato HSS y su geometría están especialmente pensados para minimizar las vibraciones y conseguir un mecanizado más preciso.
| Modelo | DCONMS (Diámetro de amarre) | OAL (Longitud total) | LU (Longitud útil) | Tamaño de la placa | LS (Longitud del mango) | DF (Diámetro de conexión) | Placa | Disponibilidad | Referencia | Precio Unitario | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZD10003016 | 16 | 103 | 31.5 | 10.00~10.40 | 48 | 23 | Y101H1000-Y101H1040 | En Almacén Externo | ZD10003016 | 292,05 € |
|
| ZD10503016 | 16 | 104 | 33 | 10.50~10.90 | 48 | 23 | Y101H1050-Y101H1090 | En Almacén Externo | ZD10503016 | 292,05 € |
|
| ZD11003016 | 16 | 105 | 34.5 | 11.00~11.40 | 48 | 23 | Y101H1100-Y101H1190 | En Almacén Externo | ZD11003016 | 292,05 € |
|
| ZD11503016 | 16 | 106 | 36 | 11.50~11.90 | 48 | 23 | Y101H1150-Y101H1190 | En Almacén Externo | ZD11503016 | 292,05 € |
|
| ZD12003016 | 16 | 109.8 | 37.5 | 12.00~12.40 | 48 | 23 | Y101H1200-Y101H1240 | En Almacén Externo | ZD12003016 | 292,05 € |
|
| ZD12503016 | 16 | 110.8 | 39 | 12.50~12.90 | 48 | 23 | Y101H1250-Y101H1290 | En Almacén Externo | ZD12503016 | 292,05 € |
|
| ZD13003016 | 16 | 112.8 | 40.5 | 13.00~13.40 | 48 | 23 | Y101H1300-Y101H1340 | En Almacén Externo | ZD13003016 | 306,32 € |
|
| ZD13503016 | 16 | 113.8 | 42 | 13.50~13.90 | 48 | 23 | Y101H1350-Y101H1390 | En Almacén Externo | ZD13503016 | 306,32 € |
|
| ZD14003016 | 16 | 116.3 | 43.5 | 14.00~14.40 | 48 | 23 | Y101H1400-Y101H1440 | En Almacén Externo | ZD14003016 | 306,32 € |
|
| ZD14503016 | 16 | 118.3 | 45 | 14.50~14.90 | 48 | 23 | Y101H1450-Y101H1490 | En Almacén Externo | ZD14503016 | 321,37 € |
|
| ZD15003016 | 16 | 120.3 | 46.5 | 15.00~15.40 | 48 | 23 | Y101H1500-Y101H1540 | En Almacén Externo | ZD15003016 | 321,37 € |
|
| ZD15503016 | 16 | 121.3 | 48 | 15.50~15.90 | 48 | 23 | Y101H1550-Y101H1590 | En Almacén Externo | ZD15503016 | 321,37 € |
|
| ZD16003020 | 20 | 127 | 51 | 16.00~16.90 | 50 | 25 | Y101H1600-Y101H1690 | En Almacén Externo | ZD16003020 | 326,27 € |
|
| ZD17003020 | 20 | 130 | 54 | 17.00~17.90 | 50 | 25 | Y101H1700-Y101H1790 | En Almacén Externo | ZD17003020 | 326,27 € |
|
| ZD18003025 | 25 | 141.3 | 57 | 18.00~18.90 | 56 | 32 | Y101H1800-Y101H1890 | En Almacén Externo | ZD18003025 | 345,20 € |
|
| ZD19003025 | 25 | 145.3 | 60 | 19.00~19.90 | 56 | 32 | Y101H1900-Y101H1990 | En Almacén Externo | ZD19003025 | 345,20 € |
|
| ZD20003025 | 25 | 147.5 | 63 | 20.00~20.90 | 56 | 32 | Y101H2000-Y101H2090 | En Almacén Externo | ZD20003025 | 347,12 € |
|
| ZD21003025 | 25 | 150.5 | 66 | 21.00~21.90 | 56 | 32 | Y101H2100-Y101H2190 | En Almacén Externo | ZD21003025 | 347,12 € |
|
| ZD22003025 | 25 | 153.4 | 69 | 22.00~22.90 | 56 | 32 | Y101H2200-Y101H2290 | En Almacén Externo | ZD22003025 | 369,87 € |
|
| ZD23003025 | 25 | 157.4 | 72 | 23.00~23.90 | 56 | 32 | Y101H2300-Y101H2390 | En Almacén Externo | ZD23003025 | 369,87 € |
|
| ZD24003032 | 32 | 165.8 | 75 | 24.00~24.90 | 60 | 37 | Y101H2400-Y101H2490 | En Almacén Externo | ZD24003032 | 422,63 € |
|
| ZD25003032 | 32 | 170.8 | 78 | 25.00~25.90 | 60 | 37 | Y101H2500-Y101H2590 | En Almacén Externo | ZD25003032 | 422,63 € |
|
| ZD26003032 | 32 | 172.2 | 81 | 26.00~26.50 | 60 | 37 | Y101H2600-Y101H2650 | En Almacén Externo | ZD26003032 | 422,63 € |
|
| ZD27003032 | 32 | 175.2 | 84 | 27.00~27.50 | 60 | 37 | Y101H2700-Y101H2750 | En Almacén Externo | ZD27003032 | 554,93 € |
|
| ZD28003032 | 32 | 179.2 | 87 | 28.00~28.50 | 60 | 37 | Y101H2800-Y101H2850 | En Almacén Externo | ZD28003032 | 554,93 € |
|
| ZD29003032 | 32 | 183.2 | 90 | 29.00~29.50 | 60 | 37 | Y101H2900-Y101H2950 | En Almacén Externo | ZD29003032 | 554,93 € |
|
| ZD30003032 | 32 | 187 | 93 | 30.00~30.50 | 60 | 37 | Y101H3000-Y101H3050 | En Almacén Externo | ZD30003032 | 607,80 € |
|
| ZD31003032 | 32 | 191 | 96 | 31.00~31.50 | 60 | 37 | Y101H3100-Y101H3150 | En Almacén Externo | ZD31003032 | 607,80 € |
|
| ZD32003032 | 32 | 197.2 | 99 | 32.00~32.50 | 60 | 37 | Y101H3200-Y101H3250 | En Almacén Externo | ZD32003032 | 607,80 € |
|
| ZD33003032 | 32 | 201.2 | 102 | 33.00~33.50 | 60 | 37 | Y101H3300-Y101H3350 | En Almacén Externo | ZD33003032 | 607,80 € |
|
